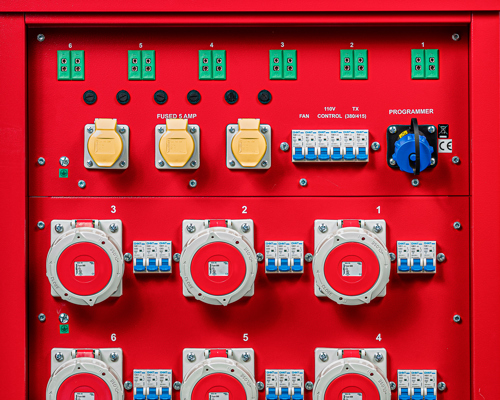

3-Phase Distribution Unit
3-Phase Distribution Unit
SKU: 100541
The 6-Channel 3-Phase Distribution/Control Unit has been robustly constructed to provide power to electrical resistance heaters connected to a 3-phase mains voltage electrical supply at 380/440V, 50/60Hz. The unit is suitable for site and workshop working.
Ther output from the unit is split into six individual heating circuits for temperature control. Each output circuit has a switching capacity of 63A, 3-phase, which is sufficient capacity for three standard channel heaters rated at 13kW, 240V connected in star.
Each of the six circuits may be controlled individually using a combination of energy regulators and the integrated channel controllers. Alternatively, fully automatic control is possible by connecting a programmer unit.
Two heater designs are suitable for use with the unit - the Channel Heater and the 220/240V Ceramic Pad Heater.
