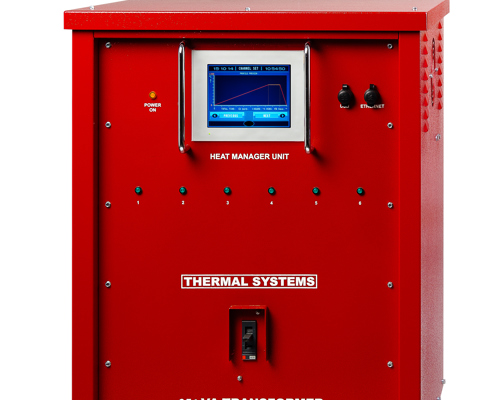

65kVA Transformer Unit - HeatManager

SKU: 100069

The HeatManager is a new and important development in the heat treatment field in temperature control,temperature recording and system management. Thermal Hire has now had twenty years experience in the design and manufacture of reliable equipment for electrical resistance and gas-fired heating. This product brings a radical new dimension to the practice of electrical resistance heating and embraces not only temperature control but also addresses other aspects of improving heat treatment practice by the introduction of failure alarms and external communication. It is a multi-language system.

The Heat Manager is available as an integrated unit, based on the Thermal Hire 50 Heat Treatment Transformers proven in the field over 25 years. These robust units are constructed to provide power to electrical resistance heaters at a safe 65V, suitable for site and workshop environments. The output from the unit is split into six individual heating circuits for temperature control. Each output circuit has 10.8 kW of power, which is sufficient capacity for four standard ceramic pads rated at 2.7 kW and connected in parallel. This is ideal for incorporating the singular control and management features of the Heat Manager.

The Heat Manager provides full control possibilities of the heat treatment processes and also offers options for the detection of heater failure by current measurement, detection for thermocouple failure or incorrect connection as well as the means for paperless temperature recording that starts and stops automatically. Of course the integrated unit has the clear advantage of eliminating the need for external connections to additional equipment.
